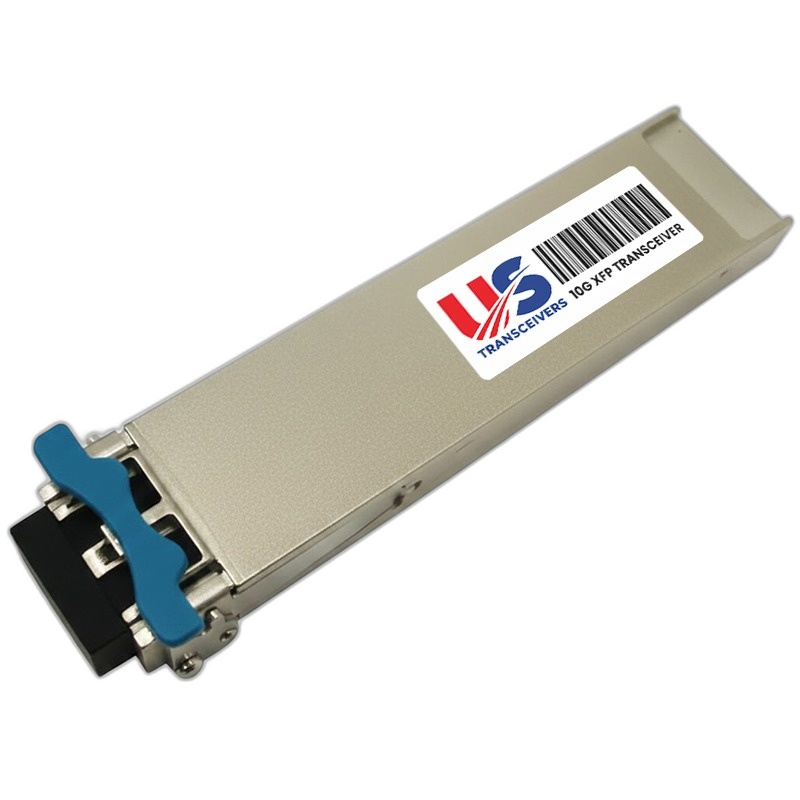

UST 10GBASE-SR XFP Transceiver for IBM – 40K8090 TAA Compliant

Name: UST 10GBASE-SR XFP Transceiver for IBM - 40K8090 TAA Compliant
Brand: IBM
SKU: 40K8090-US
Price: 186.50 USD
Availability: InStock

$186.50

SKU: 40K8090-US Categories: 10G XFP Transceiver, 10GB XFP SR, Optical Transceiver OEM Equivalent: IBM 40K8090

The US Transceivers compatible 40K8090 is a 10GBASE-SR XFP transceiver module designed for high-speed 10 Gigabit Ethernet applications over multimode fiber. Operating at an 850nm wavelength, this module supports data transmission at 10.3125 Gbps and delivers a maximum reach of 300 meters over OM3 multimode fiber, making it well suited for short-range campus and data center deployments.

Built in the compact XFP form factor, this transceiver features an LC Duplex connector interface and VCSEL-based laser technology for reliable, low-power operation. It supports Digital Diagnostic Monitoring (DDM), allowing real-time visibility into key performance parameters such as temperature, voltage, and optical power levels.

This US Transceivers compatible 40K8090 module is TAA compliant and manufactured to meet IEEE 802.3ae and XFP MSA standards, ensuring seamless interoperability with compatible network equipment in enterprise, data center, and storage networking environments.

Form Factor	XFP
Connector Type	LC Duplex
Fiber Type	Multimode (OM2, OM3)
Transmitter Type	850 nm VCSEL
Receiver Type	PIN Photodetector
Transmitter Power	-7.3 dBm min to -1 dBm max
Receiver Sensitivity	-11.1 dBm max
Extinction Ratio	3.0 dB min
Receiver Overload	0.5 dBm max
Max Power Consumption	1.5 W
DDM/DOM	Supported
Operating Temperature	0 to 70 deg C
Storage Temperature	-40 to 85 deg C
Compliance/Standards	IEEE 802.3ae, XFP MSA, RoHS, CE, REACH, TAA
Application	Data Center Interconnect, Enterprise Networking, Storage Area Networks, High-Performance Computing
Data Rate	10GB
Type	Multimode
Wavelength	850nm
Distance	≤300m
